Electric Dipole in External Electric Field

An electric dipole consists of two equal and opposite charges separated by a small distance.

Let the charges be +q and -q.

Distance between the charges = 2a

Dipole moment:

p = q × 2a

Direction of dipole moment is from negative charge to positive charge.

When an electric dipole is placed in a uniform external electric field, two equal and opposite forces act on the two charges.

Force on +q:

F = qE

Force on -q:

F = qE

These two forces are equal in magnitude and opposite in direction. Therefore, net force on the dipole is zero.

Net force = 0

But these two forces form a couple. So the dipole experiences torque.

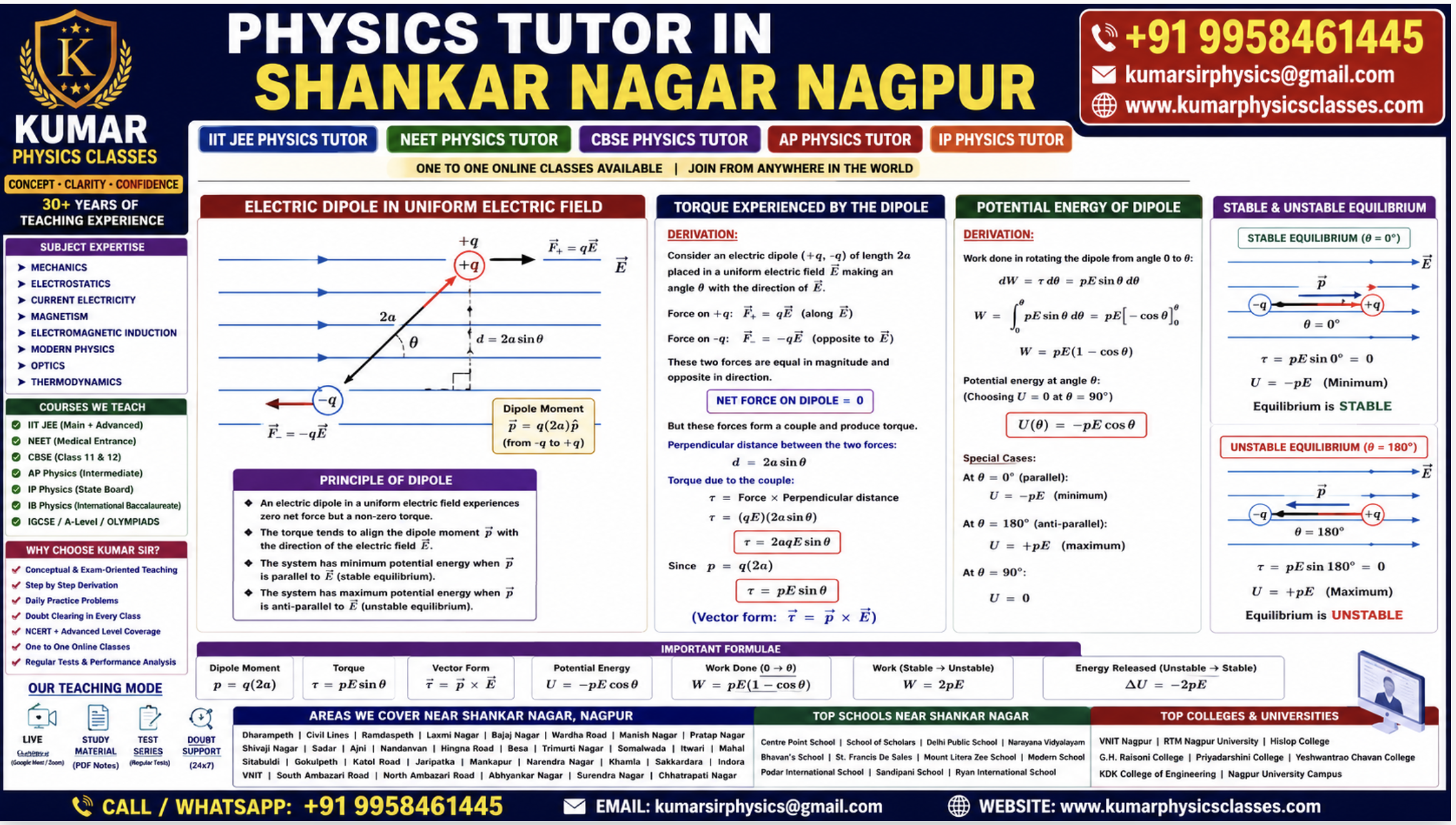

Diagram: Electric Dipole in Uniform Electric Field

Copy-paste friendly diagram:

Uniform Electric Field E →

        +q
        ●
        |\
        | \ 2a
        |  \
        |   \
        ●
        -q

Dipole moment p is from -q to +q.
Angle between p and E = θ

Torque Experienced by Dipole

Force on each charge:

F = qE

Perpendicular distance between the two forces:

d = 2a sin θ

Torque:

τ = Force × perpendicular distance

τ = qE × 2a sin θ

τ = q(2a)E sin θ

Since,

p = q(2a)

Therefore,

τ = pE sin θ

Vector form:

τ = p × E

Magnitude:

τ = pE sin θ

This torque tries to rotate the dipole and align it with the electric field.

Important Points

Net force on dipole in uniform electric field is zero.
Net torque on dipole is not zero if θ is not 0 degree or 180 degree.
Torque is maximum when θ = 90 degree.
Torque is zero when θ = 0 degree or θ = 180 degree.

Maximum torque:

τmax = pE

Minimum torque:

τ = 0

Potential Energy of Dipole in External Electric Field

Potential energy of an electric dipole in uniform electric field is:

U = -pE cos θ

Where:

U = potential energy
p = dipole moment
E = electric field
θ = angle between p and E

Stable Equilibrium

When dipole moment is in the same direction as electric field:

θ = 0 degree

U = -pE cos 0

cos 0 = 1

U = -pE

This is minimum potential energy. So this position is stable equilibrium.

Stable equilibrium:

θ = 0 degree

U = -pE

Unstable Equilibrium

When dipole moment is opposite to electric field:

θ = 180 degree

U = -pE cos 180

cos 180 = -1

U = +pE

This is maximum potential energy. So this position is unstable equilibrium.

Unstable equilibrium:

θ = 180 degree

U = +pE

Work Done in Rotating Dipole

Work done in rotating dipole from angle θ1 to θ2:

W = U2 – U1

Since,

U = -pE cos θ

So,

W = -pE cos θ2 – (-pE cos θ1)

W = pE(cos θ1 – cos θ2)

Work Done from Stable to Unstable Position

Stable position:

θ1 = 0 degree

U1 = -pE

Unstable position:

θ2 = 180 degree

U2 = +pE

Work done:

W = U2 – U1

W = pE – (-pE)

W = 2pE

So, work required to rotate dipole from stable to unstable position is:

W = 2pE

Work Done from Unstable to Stable Position

Unstable position:

U1 = +pE

Stable position:

U2 = -pE

Change in potential energy:

ΔU = U2 – U1

ΔU = -pE – pE

ΔU = -2pE

So, when dipole moves from unstable to stable position, potential energy decreases by:

2pE

This means energy is released, and the dipole naturally tends to align with the electric field.

Kumar Sir Style Explanation

Kumar Sir explains this topic in a very simple way:

If a dipole is placed in a uniform electric field, one charge feels force in one direction and the other charge feels force in the opposite direction. Since both forces are equal and opposite, net force becomes zero. But because the forces act at different points, they produce rotation. This rotation effect is called torque.

So remember:

Net force = 0

Torque = pE sin θ

Potential energy = -pE cos θ

Stable equilibrium means dipole is aligned with electric field.

Unstable equilibrium means dipole is opposite to electric field.

This is very important for NEET Physics, JEE Physics, CBSE Class 12 Physics, IB Physics and AP Physics.
