Many students feel that Simple Harmonic Motion (SHM) is difficult because there are many equations, sine functions, cosine functions, phase differences, graphs, and time calculations. But actually SHM becomes very easy when we understand one important thing:
All SHM equations are connected with each other.
If you understand how displacement, velocity, and acceleration are related, then almost every NEET Physics, IIT JEE Physics, AP Physics, A Level Physics, IB Physics, CBSE Physics, ICSE Physics, and British Curriculum Physics question becomes easy.
At Kumar Physics Classes Balewadi Pune, students are taught SHM in a very visual and conceptual way so that they can solve difficult questions quickly without memorizing unnecessary formulas.
Basic Equation of SHM
The standard equation of Simple Harmonic Motion is:
y = A sin(omega t)
Where:
y = displacement
A = amplitude
omega = angular frequency
t = time
Now one very important thing students should understand is that this equation can also be written as:
y = A sin(omega t + 0)
Why do we write +0?
Because then all three SHM equations can be compared easily in phase form.
This is a very important trick for competitive exams.
Velocity Equation in SHM
Velocity equation is:
v = A omega cos(omega t)
Now many students stop here.
But smart students convert cosine into sine form.
We know:
cos theta = sin(theta + pi/2)
Therefore:
v = A omega sin(omega t + pi/2)
Now compare displacement and velocity carefully.
Displacement:
y = A sin(omega t + 0)
Velocity:
v = A omega sin(omega t + pi/2)
Therefore phase difference between displacement and velocity is:
pi/2
This is one of the most important concepts in SHM.
Acceleration Equation in SHM
Acceleration equation is:
a = – omega square A sin(omega t)
Now students generally become confused because of minus sign.
But actually this is very easy.
We know:
sin theta = sin(theta + pi)
Therefore:
a = omega square A sin(omega t + pi)
Now compare displacement and acceleration.
Displacement:
y = A sin(omega t + 0)
Acceleration:
a = omega square A sin(omega t + pi)
Therefore phase difference becomes:
pi
Similarly compare velocity and acceleration:
Velocity phase = pi/2
Acceleration phase = pi
Difference = pi/2
So:
Displacement and velocity phase difference = pi/2
Velocity and acceleration phase difference = pi/2
Displacement and acceleration phase difference = pi
These three lines are extremely important.
Why Converting Everything into Sine Form is Important
This is one of the biggest secrets of solving SHM quickly.
If one equation is in sine and another in cosine, students become confused.
But if all equations are converted into sine form, then comparison becomes extremely easy.
That is why at Kumar Physics Classes Balewadi Pune, students are trained to convert all SHM equations into the same trigonometric form.
This helps students solve:
Phase difference problems
Time calculation problems
Graph questions
Assertion reason questions
Advanced JEE problems
very quickly.
Important Trigonometric Identities Used in SHM
Students should remember these identities:
cos theta = sin(theta + pi/2)
sin theta = sin(theta + pi)
These identities are extremely useful in SHM.
Most students study these identities in Class 10 or Class 11 trigonometry but never apply them properly in Physics.
Physics becomes very easy when Mathematics is applied correctly.
Understanding Time Problems in SHM
Now let us understand one of the most important types of SHM questions.
Suppose the question says:
“A particle executes SHM with amplitude A and time period T. Find minimum time taken to travel from equilibrium position to half amplitude.”
Students generally panic.
But actually this is very easy.
Step-by-Step Solution
We know:
y = A sin(omega t)
The particle moves from equilibrium position to A/2.
Therefore substitute:
y = A/2
So:
A/2 = A sin(omega t)
A cancels.
Therefore:
sin(omega t) = 1/2
We know:
sin(pi/6) = 1/2
Therefore:
omega t = pi/6
Now use:
omega = 2 pi / T
Substitute:
(2 pi / T)t = pi/6
Pi cancels.
Therefore:
2t/T = 1/6
Hence:
t = T/12
This is the minimum time required.
Physical Meaning of This Result
This result teaches a very beautiful physical concept.
Near mean position:
velocity is maximum
particle moves fast
Therefore particle quickly reaches A/2.
That is why time is small.
Time Taken from A/2 to Extreme Position
Now suppose the question asks:
“How much time is taken from A/2 to A?”
Students should understand one important thing.
Time taken from mean to extreme position is:
T/4
Already time from mean to A/2 is:
T/12
Therefore remaining time becomes:
T/4 – T/12
Take LCM:
= 3T/12 – T/12
= 2T/12
= T/6
Therefore time from A/2 to extreme position is:
T/6
Very Important Observation
Students should carefully understand this point.
From mean position to half amplitude:
particle moves fast
time is smaller
But near extreme position:
velocity becomes smaller
particle slows down
Therefore motion near extreme position takes more time.
This is a very important conceptual understanding.
Velocity in SHM
Velocity is maximum at mean position.
Velocity becomes zero at extreme position.
This is why:
motion is fast near center
motion is slow near extremes
Students who visualize this never forget SHM.
Acceleration in SHM
Acceleration is:
zero at mean position
maximum at extreme position
Why?
Because restoring force is maximum at extreme position.
This restoring force pulls particle back toward mean position.
Restoring Force in SHM
Restoring force is always directed toward mean position.
Its equation is:
F = -kx
This negative sign is extremely important.
Negative sign shows restoring nature.
Whenever particle moves away from mean position, force pulls it back.
This is the heart of SHM.
Relation Between Force and Acceleration
Using Newton’s Second Law:
F = ma
And:
F = -kx
Therefore:
ma = -kx
Hence:
a = -(k/m)x
Compare with:
a = – omega square x
Therefore:
omega square = k/m
This is one of the most important derivations in oscillation.

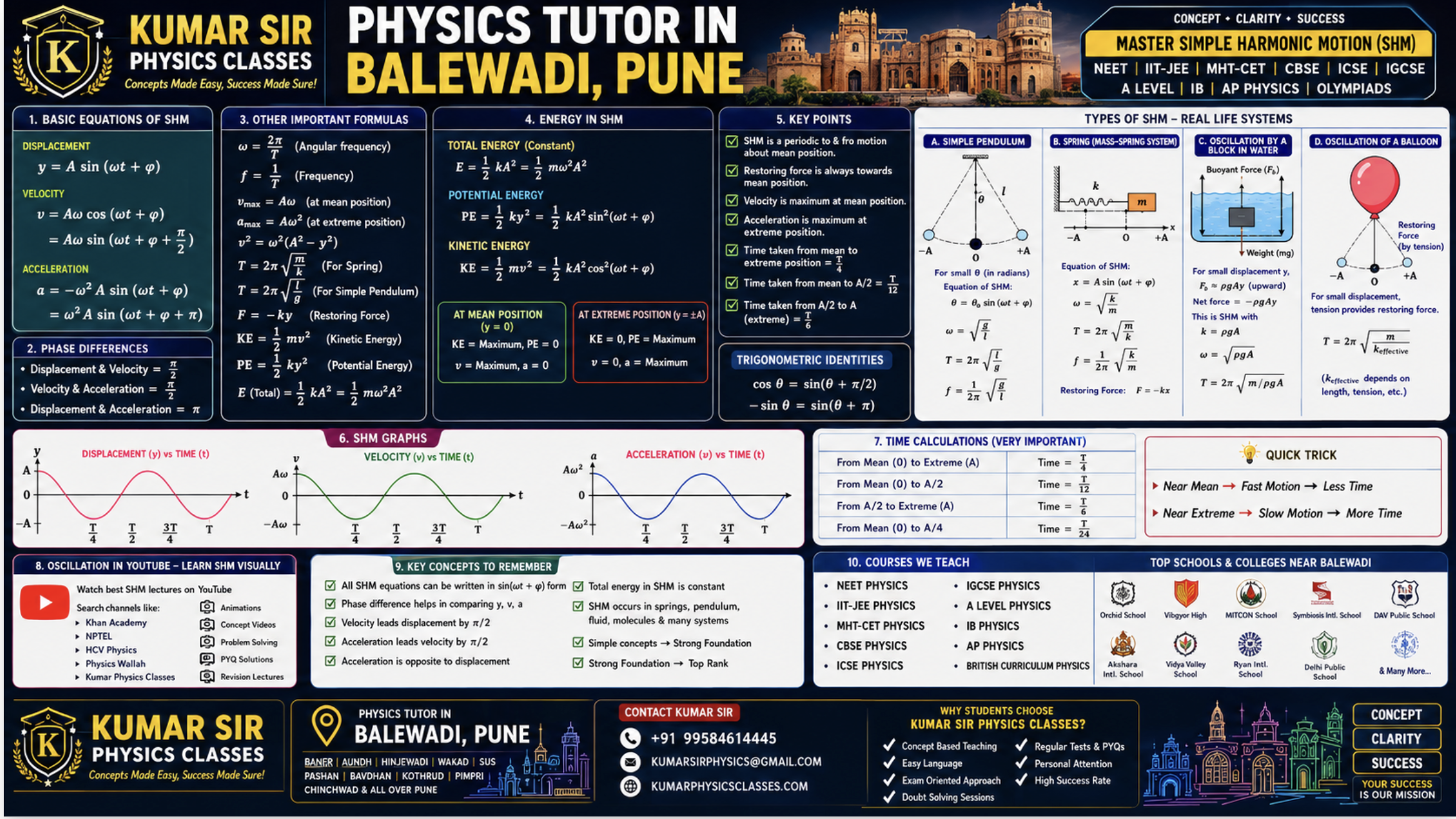

SHM Graph Understanding
Students preparing for NEET and JEE should understand graphs properly.
Displacement Graph
Displacement follows sine curve.
Velocity Graph
Velocity leads displacement by pi/2.
Acceleration Graph
Acceleration is opposite to displacement.
This means displacement and acceleration are out of phase by pi.
Why Students Fear SHM
Most students fear SHM because:
too many equations
trigonometric functions
phase differences
graphs
calculus concepts
But actually SHM is one of the easiest chapters if concepts are understood visually.
At Kumar Physics Classes Balewadi Pune, SHM is taught through diagrams, animations, logic, and physical interpretation instead of rote memorization.
Real Life Examples of SHM
SHM is everywhere in daily life.
Examples include:
Pendulum motion
Spring oscillation
Vibrations of guitar strings
Vibrations in machines
Molecular vibrations
Electrical oscillations
Earthquake waves
Atomic vibrations
That is why SHM is one of the most fundamental topics in Physics.
Why SHM is Important for Competitive Exams
SHM questions are frequently asked in:
NEET Physics
IIT JEE Main
IIT JEE Advanced
AP Physics
IB Physics
IGCSE Physics
A Level Physics
SAT Physics
CBSE Class 11 Physics
Maharashtra Board Physics
ICSE Physics
Students who master SHM perform much better in mechanics and wave motion.
Common Mistakes Students Make
Mistake 1 – Forgetting Phase Difference
Students memorize formulas but forget relative phases.
Mistake 2 – Confusing Sine and Cosine Forms
Always convert into same form before comparison.
Mistake 3 – Not Understanding Physical Meaning
Students solve mathematically without understanding motion physically.
Mistake 4 – Forgetting Velocity Behaviour
Velocity:
maximum at mean
zero at extreme
This concept is extremely important.
Advanced Concept – Why Velocity Leads Displacement
Velocity is derivative of displacement.
Derivative of sine becomes cosine.
That is why velocity leads displacement by pi/2.
Similarly acceleration is derivative of velocity.
Therefore acceleration shifts further by pi/2.
This creates total phase difference pi between displacement and acceleration.
Simple Trick to Remember Phase Difference
Students can remember using this pattern:
Displacement → Velocity → Acceleration
Each step changes by pi/2.
Therefore:
displacement to velocity = pi/2
velocity to acceleration = pi/2
displacement to acceleration = pi
Very easy.
