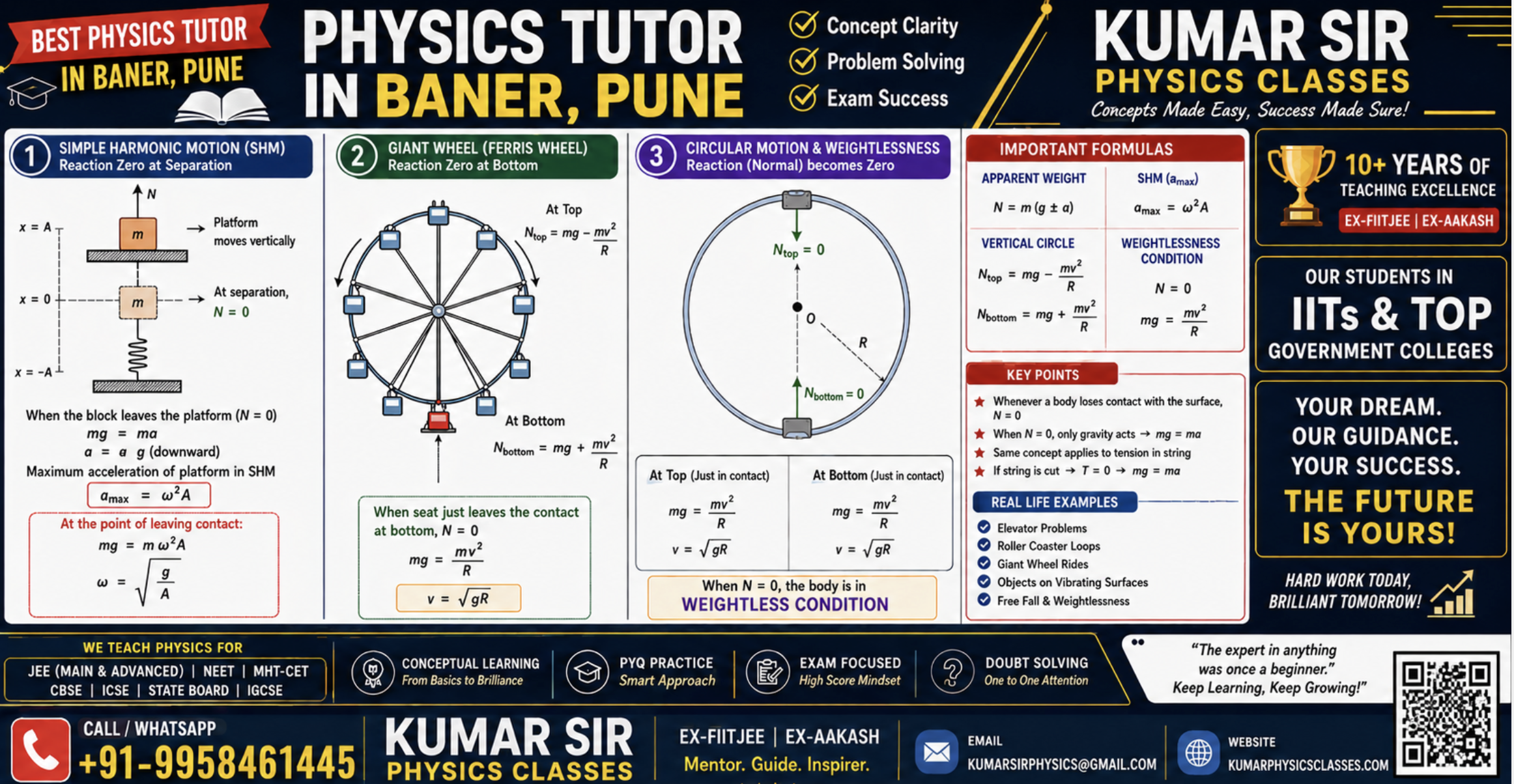

Physics Tutor in Baner Pune infographic explaining Simple Harmonic Motion, reaction force becoming zero, giant wheel weightlessness, circular motion formulas, and apparent weight concepts with contact details of Kumar Sir Physics Classes.

Physics Tutor in Baner Pune – Reaction Zero, Giant Wheel Feeling, Normal Reaction and Apparent Weight Explained by Kumar

+91-9958461445

Introduction

Many students study the chapter of oscillation, circular motion, elevator problems, apparent weight, and normal reaction separately, but in reality all these concepts are deeply connected with each other. When a student understands the actual physical meaning of reaction force, tension force, apparent weight, and contact force, then difficult questions become very easy.

This is one of the most important concepts not only for JEE and NEET Physics but also for Olympiad level understanding. Students generally memorize formulas such as:

N = mg
N = m(g + a)
N = m(g − a)
T = mg
T = m(g ± a)

But they do not understand what is actually happening physically.

The real understanding begins when we understand one simple idea:

Whenever contact between two bodies disappears, the reaction force becomes zero.

And similarly:

Whenever a string becomes loose or is cut, the tension becomes zero.

This single idea can solve many difficult problems of mechanics.

At Kumar Physics Classes, Baner Pune, these concepts are taught in a highly practical and visual manner so that students can connect physics with real life experiences such as giant wheels, amusement park rides, elevators, free fall situations, vibrating platforms, roller coasters, and oscillating systems.

What is Reaction Force?

Suppose a block is placed on a platform.

The Earth pulls the block downward with force mg.

The platform pushes the block upward.

This upward force exerted by the surface is called Normal Reaction.

Normally if the block is at rest:

N = mg

where:

N = normal reaction
mg = weight of the body

But the moment acceleration starts, reaction changes.

This is the biggest point students must understand.

Reaction is not always equal to mg.

Reaction depends upon the relative motion between the body and the surface.

The Most Important Concept – Loss of Contact

Now suppose the platform starts vibrating up and down.

Initially the block remains in contact with the platform.

But if the downward acceleration of the platform becomes very large, then a moment comes when the platform moves downward faster than the block.

At that instant:

Contact breaks
The surface can no longer push the block
Therefore reaction force becomes zero

This is the key concept.

The surface can only push while contact exists.

No contact means no reaction.

Exactly the same logic is used in many physics problems.

Oscillating Platform Problem

Suppose a platform performs SHM.

Its displacement equation is:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”y=A\sin(\omega t)”}}

Then acceleration becomes:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”a=-\omega^2 y”}}

Maximum acceleration:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”a_{max}=\omega^2 A”}}

Now think carefully.

When will the block lose contact?

The block loses contact when reaction becomes zero.

So at the limiting condition:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”N=0″}}

Applying Newton’s Second Law:

Downward direction acceleration becomes equal to g.

Therefore:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”mg=m\omega^2 A”}}

Mass cancels.

Therefore:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”\omega=\sqrt{\frac{g}{A}}”}}

This is one of the most famous results in oscillation.

Students often memorize it without understanding.

But the actual physical meaning is:

The platform moves downward so fast that it can no longer support the block.

Therefore reaction becomes zero.

Why Do We Feel Weightless in Giant Wheel?

Now connect this idea with real life.

Suppose you sit in a giant wheel in an amusement park.

When the wheel moves downward very fast, especially near the top portion of the motion, you suddenly feel very light.

Sometimes it feels as if your stomach is moving upward.

Why?

Because your apparent weight decreases.

Your actual weight mg never changes.

But what changes is the reaction force exerted by the seat.

Your body feels pressure only due to contact force.

If reaction decreases:

Apparent weight decreases
You feel lighter

If reaction becomes zero:

Apparent weight becomes zero
You feel weightlessness

This is exactly what astronauts experience in orbit.

Apparent Weight

Students confuse real weight and apparent weight.

Real weight:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”W=mg”}}

Apparent weight:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”W_{apparent}=N”}}

Your body does not directly feel mg.

Your body feels only contact force.

That is why when the reaction becomes smaller, you feel lighter.

When the reaction becomes larger, you feel heavier.

Elevator Physics

Suppose you stand inside a lift.

Case 1: Lift at rest

Then:

N = mg

Case 2: Lift accelerating upward

Reaction increases.

genui{“math_block_widget_always_prefetch_v2”:{“content”:”N=m(g+a)”}}

You feel heavier.

Case 3: Lift accelerating downward

Reaction decreases.

genui{“math_block_widget_always_prefetch_v2”:{“content”:”N=m(g-a)”}}

You feel lighter.

Case 4: Lift in free fall

Then:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”a=g”}}

Therefore:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”N=0″}}

Now apparent weight becomes zero.

This condition is called weightlessness.

Why Students Scream in Rides?

This is a very interesting psychological and physical phenomenon.

When the ride suddenly moves downward:

Reaction decreases rapidly
Body loses support
Apparent weight drops
Internal balance system senses instability

That creates excitement and fear simultaneously.

Students generally think they scream because of height.

But actual reason is sudden decrease in reaction force.

Physics explains amusement park emotions beautifully.

String Problems and Tension Becoming Zero

Now let us connect reaction force with tension force.

Suppose a body hangs with a string.

Initially:

T = mg

Now suppose the string is cut.

The moment the string breaks:

String can no longer pull
Therefore tension becomes zero

Then only gravity acts.

So:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”mg=ma”}}

Therefore:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”a=g”}}

This is free fall.

Exactly the same idea applies to reaction force.

If surface contact breaks:

Surface can no longer push
Therefore reaction becomes zero

This is one of the most important conceptual similarities in mechanics.

Surface Can Push Only During Contact

Students should remember this golden line:

A surface can only push during contact.

Similarly:

A string can only pull while connected.

These two statements solve many conceptual problems.

Circular Motion and Reaction Force

In vertical circular motion also reaction changes continuously.

At the top point:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”mg+N=\frac{mv^2}{r}”}}

If speed decreases too much, then N becomes zero.

At limiting condition:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”mg=\frac{mv^2}{r}”}}

Therefore:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”v=\sqrt{gr}”}}

This is minimum speed at the top for complete vertical circle.

Again same idea:

Loss of contact means reaction becomes zero.

Roller Coaster Physics

Roller coaster design is completely based upon reaction force and centripetal acceleration.

At certain points reaction becomes very small.

Passengers feel almost weightless.

At lower points reaction becomes very high.

Passengers feel very heavy.

The entire thrill depends upon variation of normal reaction.

Why Normal Reaction is Called Apparent Weight

Suppose you stand on a weighing machine.

The machine does not measure mg directly.

It measures reaction force.

Therefore weighing machine reading equals apparent weight.

That is why:

In upward acceleration reading increases
In downward acceleration reading decreases
In free fall reading becomes zero

Deep Conceptual Understanding for JEE and NEET

Students preparing for competitive exams should not only memorize formulas.

They should visualize actual forces.

Ask these questions:

Is contact present?
Can the surface still push?
Is the string still connected?
Is acceleration upward or downward?
Is apparent weight increasing or decreasing?

If these questions are answered correctly, then almost every mechanics problem becomes easy.

Common Mistakes Students Make

Mistake 1 – Assuming N always equals mg

Wrong.

Reaction changes with acceleration.

Mistake 2 – Confusing Real Weight with Apparent Weight

Real weight is always mg.

Apparent weight is reaction.

Mistake 3 – Forgetting Limiting Condition

Loss of contact means:

N = 0

This is extremely important.

Mistake 4 – Memorizing Without Visualization

Students memorize equations but cannot imagine physical motion.

At Kumar Physics Classes Baner Pune, concepts are taught visually and physically.

Real Life Examples of Reaction Becoming Zero

Example 1 – Jumping from a Height

When you leave the ground:

Reaction becomes zero.

Only gravity acts.

Example 2 – Elevator in Free Fall

Reaction becomes zero.

You feel weightless.

Example 3 – Giant Wheel

At certain points reaction becomes very small.

Example 4 – Airplane Turbulence

Sudden downward acceleration reduces apparent weight.

Passengers feel floating sensation.

Example 5 – Oscillating Platform

If downward acceleration exceeds g, contact breaks.

Advanced Understanding – Relative Motion Between Surface and Block

Actually contact breaks because the platform accelerates downward faster than gravity can keep the block attached.

The block tries to follow natural free fall.

But the platform moves away.

Hence separation occurs.

This viewpoint gives very deep understanding.

Mathematical Derivation in Simple Form

Suppose downward acceleration of platform is:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”a=\omega^2 A”}}

For contact:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”N=m(g-a)”}}

At separation:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”N=0″}}

Therefore:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”g-a=0″}}

Hence:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”a=g”}}

Substitute:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”\omega^2 A=g”}}

Finally:

genui{“math_block_widget_always_prefetch_v2”:{“content”:”\omega=\sqrt{\frac{g}{A}}”}}

Importance for Competitive Exams

This topic is extremely important for:

NEET Physics
JEE Main
JEE Advanced
Olympiads
AP Physics
CBSE Class 11 Physics
CBSE Class 12 Physics
Maharashtra Board Physics
ICSE Physics
ISC Physics

Questions are frequently asked from:

Elevator problems
Apparent weight
Circular motion
SHM contact problems
String tension problems
Roller coaster motion
Vertical circle motion

Teaching Method at Kumar Physics Classes Baner Pune

At Kumar Physics Classes, students are taught through:

Conceptual visualization
Real life examples
Step by step derivation
Graphical understanding
Practical interpretation
Numerical problem solving
Advanced conceptual discussions

Students are encouraged to imagine actual motion instead of memorizing formulas.

This creates long term understanding.

Why Students from Top Schools Need Strong Physics Foundation

Students from top schools often solve numerical questions but still struggle with deep conceptual understanding.

That is why conceptual training becomes essential.

Strong mechanics foundation helps in:

Rotational mechanics
SHM
Waves
Electrostatics
Modern physics
Fluid mechanics
Advanced problem solving

Physics Tutor in Baner Pune – Areas and Institutions

Physics Tutor Near Major Schools and Colleges in Pune

Physics Tutor Near Coaching Institutes in Pune

Physics Tutor in Allen Pune, Physics Tutor in Aakash Institute Pune, Physics Tutor in FIITJEE Pune, Physics Tutor in Motion Pune, Physics Tutor in PW Vidyapeeth Pune, Physics Tutor in Resonance Pune, Physics Tutor in Rao IIT Academy Pune, Physics Tutor in Bakliwal Tutorials Pune, Physics Tutor in Prime Academy Pune, Physics Tutor in Chate Coaching Classes Pune

Conclusion

The concept of reaction force becoming zero is one of the most beautiful and powerful ideas in mechanics.

Whether it is:

Giant wheel
Roller coaster
Elevator
Vibrating platform
Free fall
Circular motion
Oscillation
String tension

The same physical principle appears repeatedly.

When contact disappears, reaction becomes zero.

When connection disappears, tension becomes zero.

Students who deeply understand this idea develop a very strong conceptual foundation in Physics.

At Kumar Physics Classes Baner Pune, concepts are not taught through rote memorization. They are taught through visualization, logic, real life experiences, and deep conceptual discussion so that students can solve even difficult competitive exam questions confidently.

For advanced Physics learning, conceptual mechanics, NEET Physics, JEE Physics, AP Physics, and Olympiad preparation, strong understanding of reaction force, apparent weight, SHM, and circular motion is absolutely essential.
